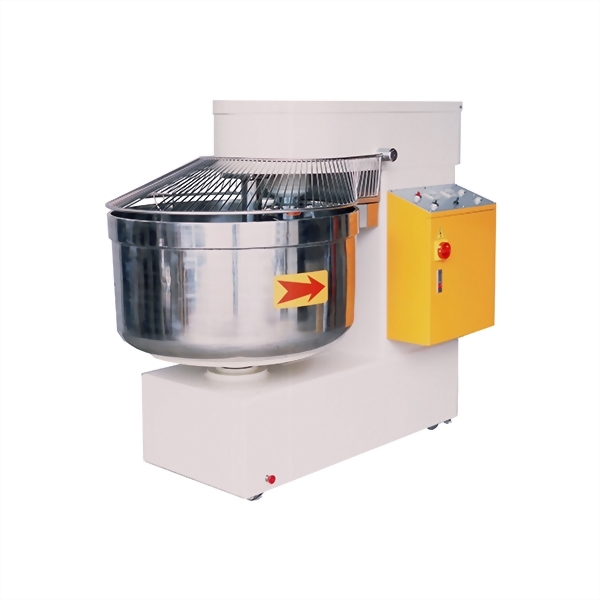

High Speed Heavy Spiral Mixer

➤ Two easy modes, high speed and low speed, are user-friendly.
➤ The strength-and-time saving feature make more production.
➤ Strong and neat design is easy for user to do maintenance.
Model : L-203 / L-204 / L-205 / L-206

➤ The bowl and hook can rotate at the same time. Double-motored design suit the needs for all agitation making satisfactory gluten.

➤ Multiple applications, pasta, pizza, meat ball, and hand-made cookie.

➤ It is mainly used to agitate the dough, which contain water and oil below 75%.

Model Motor Capacity Shaft
RPM
Bowl
RPM

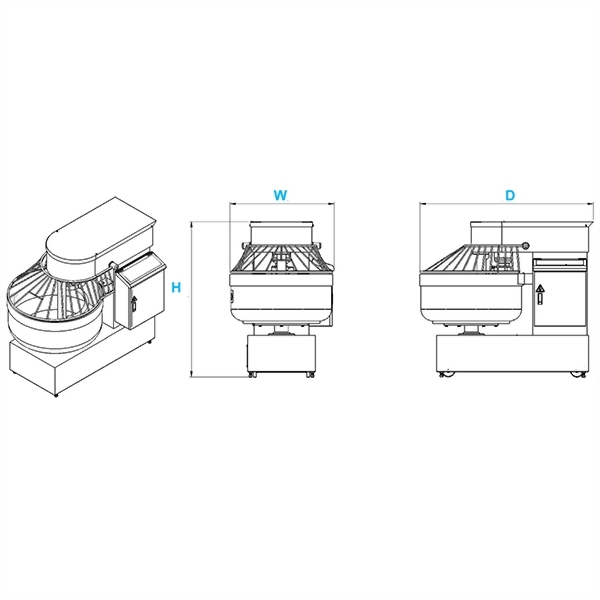

Dimension
D*W*H(cm)
Weight
(kg)
Bowl
(liter)
Flour
(kg)
Dough
(kg)
L-203 10-2Hp 220 75 120 115-230 25 148x90x133 870
L-204 12-2Hp 260 100 160 115-230 25 148x90x133 880
L-205 15Hp-3Hp 300 125 200 115-230 25 153x94x135 900
L-206 20Hp-3Hp 360 150 240 115-230 25 160x105x135 930


* Packing size and weight might be subject to change based on different transportations.

* Due to product improvement and add-on equipment, specification and weight might be changed without notice.

Standard :

➤ Hook

➤ Stainless Steel Safe Net

➤ Touch-tone Panel

➤ 220V~415V / 3 phase

Add-on :

➤ Stainless Steel Body

➤ Beater

➤ Whip

➤ Bowl Scraper
