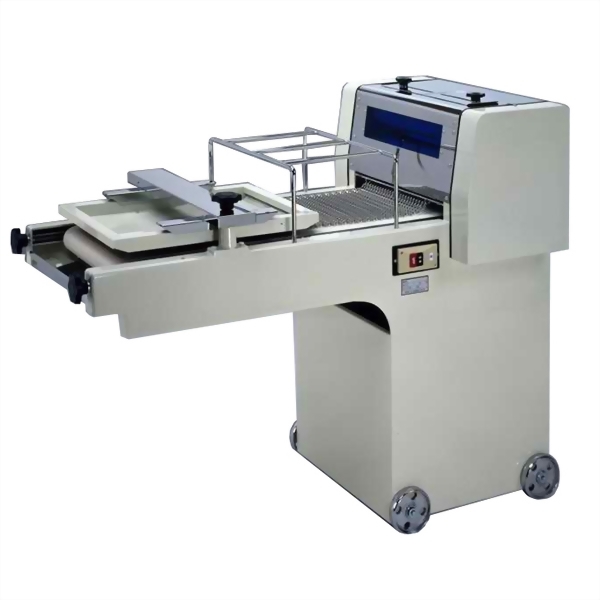

Floor-Type Dough Moulder

➤ Two sets of rollers, the moulder can prolong the dough again.
➤ The scrapper is fixed design.
➤ No need for powdering dough while molding process except ones with high viscosity.
➤ Dough going through the pressure plate makes itself dense and prolonged.
➤ High production can manipulate by two personnel.

Model : TA-101L / TA-101M / TA-101S

Q'ty :

➤ Applicable to any mission to de-air and mold dough.

➤ The gap between the rollers can be adjusted according to the size and hardness of dough. After being molded, the dough structure will be much denser.

Model	Conveyor (mm)	HP	Pressing Roller		Machine Size WDH (cm)	Net Weight (Kg)
Model	Conveyor (mm)	HP	Size(mm)	Unit	Machine Size WDH (cm)	Net Weight (Kg)
TA-101L	380 x 2280	1	φ90 x 390	4	68x136x110	220
TA-101M	290 x 2280	1/2	φ90 x 300	4	58x136x110	200
TA-101S	290 x 1960	1/2	φ90 x 300	4	58x126x105	190

Optional :

➤ Safety Cover
