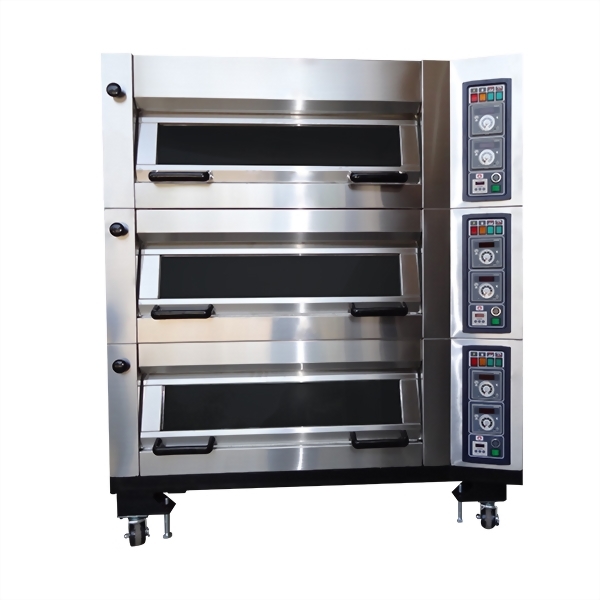

Flip-up Gas Oven (4 Trays / Deck)

➤ The probing system is sophisticatedly design to adjust the temperature.
➤ Ignition will consume the gas. Multi-protection will be switched on when the ignition fails.
➤ Unique heat-resisting glasses and interior fire-resisting lights make it easier for the user to observe the situations inside the oven without opening the entry and with less energy emission.
➤ Independently designed timer and buzzer make the user easily have a time control to finish the product.
➤ Best to toast because even temperature and quicker heating up.
➤ It is suitable for supermarket, school, studio, and bakeries.
➤ Heating methods be replaced with nature gas or LPG.

Model : LBG-U208-1 / LBG-U312-1 / LBG-U312-2

Q'ty :

➤ This oven is specially designed without rivets. It is easy to stay clean and to be washed.

➤ Every layer is of proper thickness and of good quality to preserve temperature, the features of which are energy-saving, quick-heating, and heated balancedly.

Model	Deck * Tray	Total Tray	Tray Size W*D (cm)	Power/ Deck	Gas/ hour	Chamber Size WDH (cm)	Machine Size WDH (cm)
LBG-U208-1	2 x 4	8	Max. 60x40	110V 220V 140W	0.43kg	1508921	193114170
LBG-U312-1	3 x 4	12	Max. 60x46	10V 220V 140W	0.43kg	1508921	193114186
LBG-U312-2	3 x 4	12	Max. 72x46	110V 220V 140W	0.43kg	1509321	193118186

* Packing size and weight might be subject to change based on different transportation.

* Due to product improvement or add on equipment, specification and weight might be changed without prior notice.

Standard :

➤ Stainless appearance

➤ Aluminizing

➤ LED Control Panel

➤ Quadra-pod (2deck)

Optional :

➤ (-S) Steam / layer

➤ (-F) Flat Slate /layer

➤ (-H) Exhaust hood

➤ Canvas supporter / Shovel
