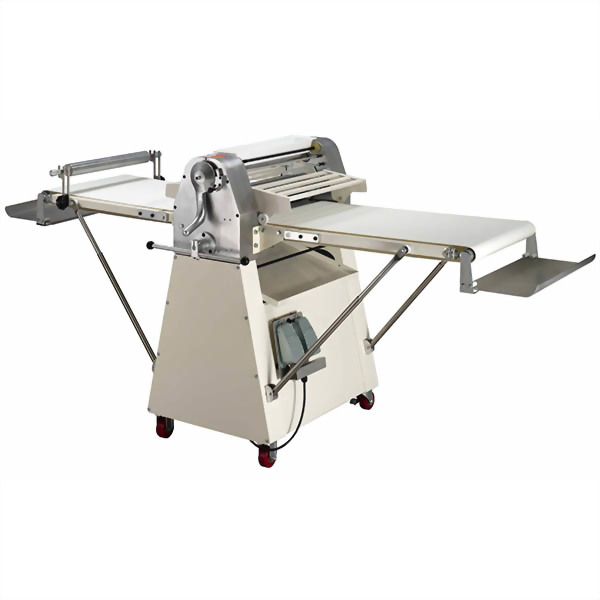

Floor-Type Dough Sheeter

Floor-Type Dough Sheeter - Handle Down

➤ Conveyor is reversible and is controlled by manual handle.
➤ Safety net is equipped with latches. The user could be protected.
➤ Highly resilient conveyor belt, the belt material will not absorb the oil and water.
➤ The thickness of the dough could be controlled by handle.
➤ Unique designed, the roller is attached by less dough.
➤ Flexible conveyor, convenient and space-efficient.
➤ The final thickness of the dough can be preset.

Model : D450B / D520B / D520C / D650B / D650C

Q'ty :

➤ Application to egg tart, pies, pizza, snack, puff pastry, Arabian bread, green onion pancake.

Model	Conveyor spec. (mm)	Press Roller (mm)	Hose power	Dimension LWH (mm)	Net Weigh (kg)
D450B	430x2000	∮88 x 435	1/2HP	2530x845x1125	155
D520B	515x2000	∮88 x 520	1/2HP	2530x930x1125	165
D520C	515x2400	∮88 x 520	1HP	2900x930x1125	175
D650B	630x2400	∮88x 635	1HP	2900x1045x1125	200
D650C	630x2900	∮88 x 635	1HP	3410x1045x1125	205

Standard :

➤ Manual Switch

➤ Dough rolling pin

➤ Meet CE regulations

Optional :

➤ The areas of coating is stainless steel (S/S)

➤ Foot pad-switch (F)

➤ Auto Powder Sprayer
