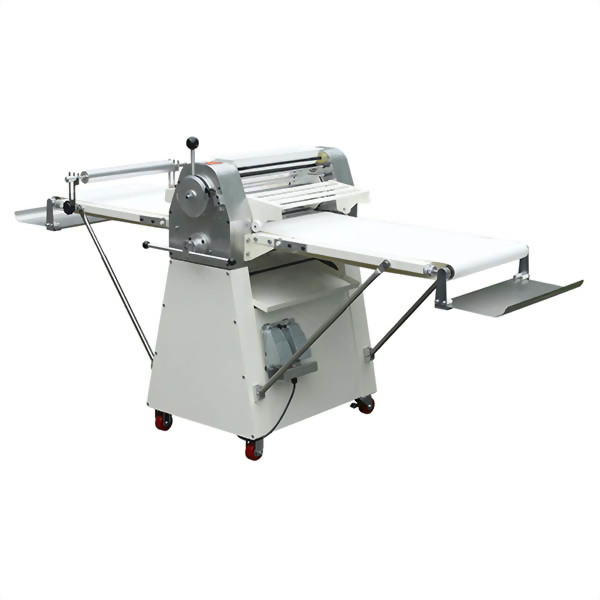

Floor-Type Dough Sheeter

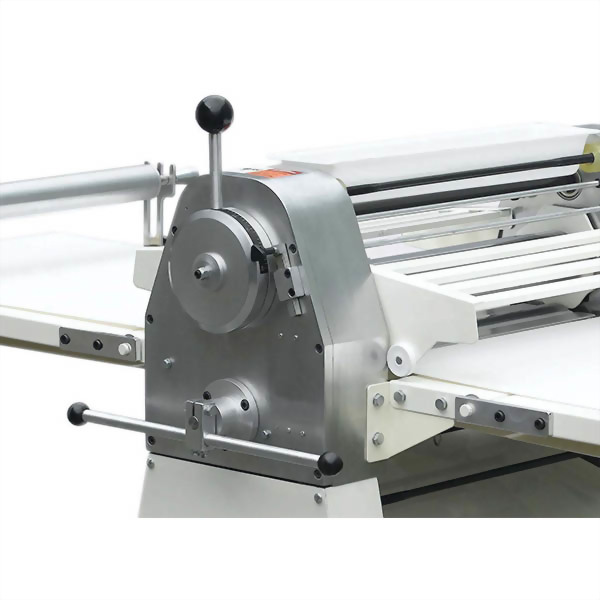

Floor-Type Dough Sheeter – Handle Up

➤ Conveyor direction is reversible and is manually controlled by controlling rod.
➤ Safety net is equipped with latches. The user could be protected.
➤ Highly resilient conveyor belt, the belt material will not absorb the oil and water.
➤ The thickness of the dough could be controlled by handle (1~40 mm).
➤ Unique designed, the roller is attached by less dough.
➤ Flexible conveyor, convenient and space-efficient.
➤ The final thickness of the dough can be preset.

Model : 450B / 520B / 520C / 650B / 650C

Q'ty :

➤ Application to egg tart, pies, pizza, snack, puff pastry, Arabian bread, green onion pancake.

Model	Conveyor spec. (mm)	Press Roller (mm)	Hose power	Dimension LWH (mm)	Net Weigh (kg)
450B	430x2000	∮88 x 435	1/2HP	2530x785x1125	160
520B	515x2000	∮88 x 520	1/2HP	2530x870x1125	170
520C	515x2400	∮88 x 520	1HP	2900x870x1125	180
650B	630x2400	∮88 x 635	1HP	2900x985x1125	205
650C	630x2900	∮88 x 635	1HP	3410x985x1125	210

Standard :

➤ Manual Switch

➤ Dough rolling pin

➤ Meet CE regulations

Optional :

➤ The areas of coating is stainless steel (S/S)

➤ Foot pad-switch (F)

➤ Auto Powder Sprayer
